Tuddy’s Engineering provides a dedicated shop detailing department, capable of preparing fabrication drawings for all facets of steel construction.

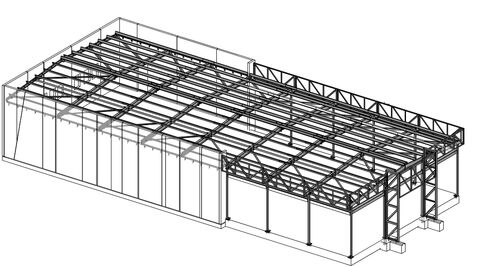

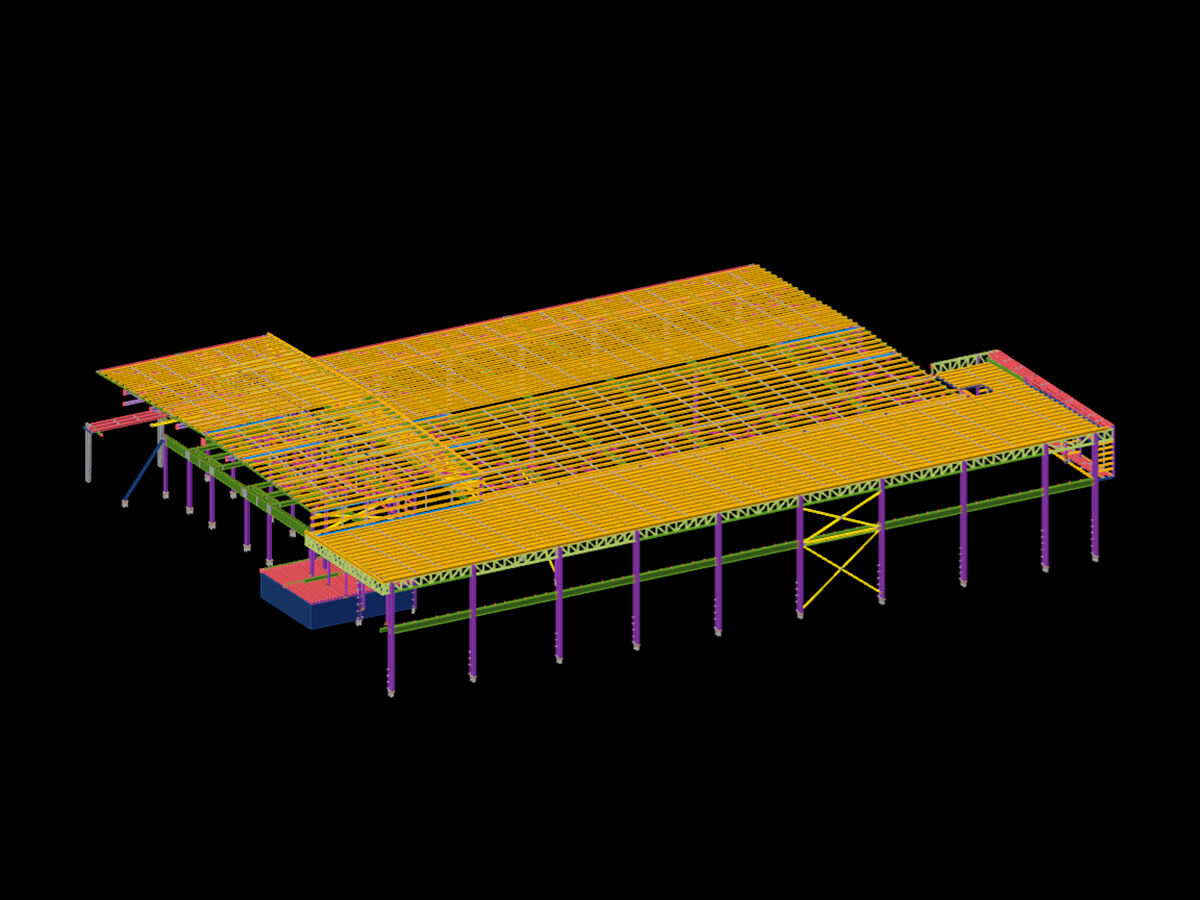

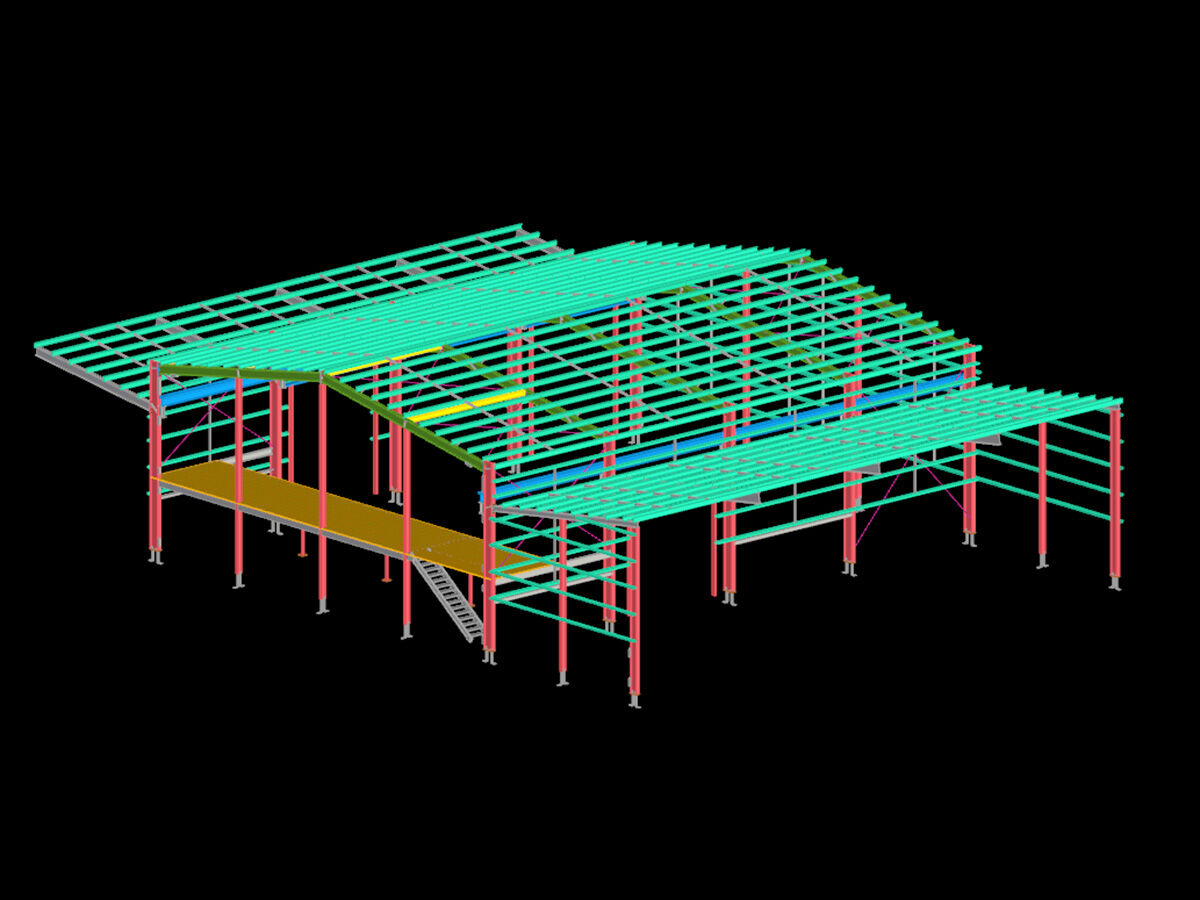

Utilising the latest version of Tekla Structures, projects are modelled in 3D, and the subsequent fabrication details, fittings and reports are generated directly from the model. The 3D model can be exported to builders and consultants for coordination.

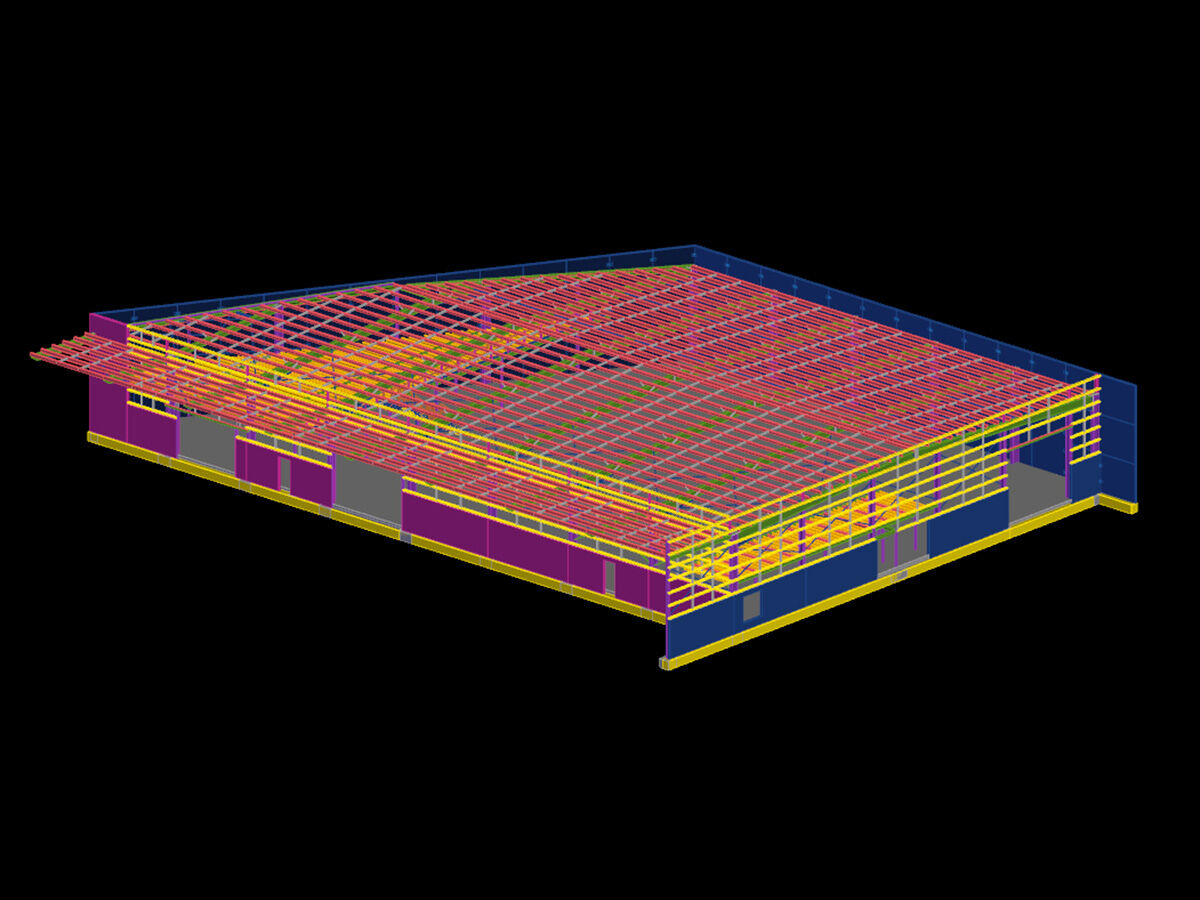

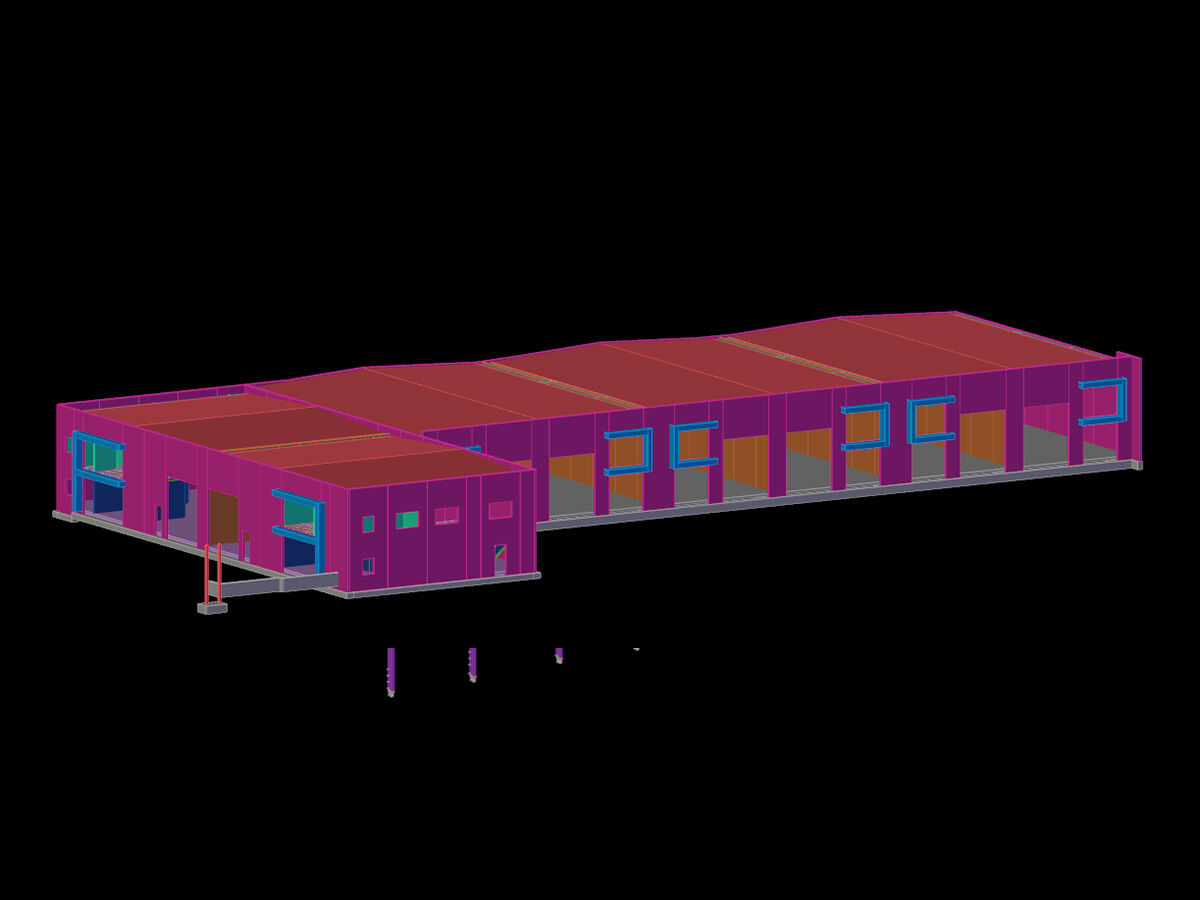

As an extension to steel fabrication drawings, we can also provide shop detailing for precast panels.  With both steel and concrete elements modelled together in 3D, we can streamline the construction process with an accurate outcome. Alternatively, precast panels can also be detailed as a stand-alone component.
